Variable Angle Cutting Machine

Angular cutting system designed for precise trimming and pattern cutting of flexible PU foam pieces.

Overview

Get A Quote Download Brochure
The Variable Angle Cutting Machine is engineered for cutting foam blocks and smaller foam pieces at adjustable angles with high accuracy. Its vertical cutting mechanism swivels in both directions, allowing controlled angular cuts for varied shapes and profiles. Designed for safe and reliable operation, the system supports trimming flexible PU foam to specified thicknesses while maintaining stable cutting performance across different angles.

Machine Specifications

Specification Details
Machine Type Variable Angle Cutting Machine
Cutting Orientation Vertical band knife cutting
Angle Adjustment Swivelling cutting unit
Cutting Direction Bi-directional cutting
Knife Stability No band knife twisting
Knife Sharpening Motor-driven grinding unit
Guide System Adjustable guide rollers
Application Trimming and angular cutting

Technical Specifications

Specification Value
Table Size 4 ft × 5 ft
Blade Size 7400 mm
Cutting Angle Range 90° to 45°
Material Cutting Height (90°) 400 mm
Material Cutting Height (45°) 250 mm

Key Benefits

Accurate Angle Cutting

Supports clean and controlled cuts at multiple angles.

Stable Knife Movement

Bi-directional cutting without band knife twisting.

Consistent Edge Finish

Motorized grinding maintains sharp cutting edges.

Operator-Friendly Design

Simple setup supports safe and reliable trimming.

Product Gallery

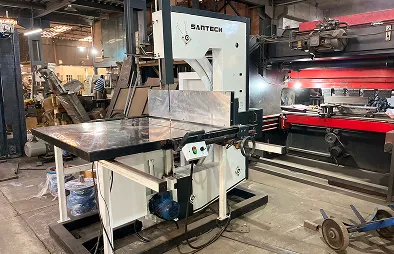

Visual overview of Variable Angle Cutting Machine structure, cutting assembly, and angular adjustment mechanism.

Related Machines

Explore related foam cutting machines designed for trimming, profiling, and shape-based cutting applications.

Rebonding Machine

Long Block Peeling Machine

Manual Vertical Cutting Machine

Automatic Vertical Foam Cutting Machine

Explore All Machines

Got Questions? We’ve Got Answers!

Explore frequently asked customer questions about variable angle cutting machines, installation, and technical support.

Explore All FAQs

A variable angle cutting machine is used to trim foam blocks or pieces at adjustable angles. It is commonly applied where foam needs to be shaped or cut into specific profiles rather than straight cuts.

Bi-directional cutting allows the blade to move in both directions without twisting. This improves cutting stability, maintains edge quality, and helps extend band knife life during repeated angular cutting cycles.

The motor-driven grinding unit keeps the band knife sharp during operation. This supports consistent cutting quality and reduces downtime associated with manual blade sharpening.

As the cutting angle changes, the maximum cutting height adjusts accordingly. At steeper angles, the machine supports higher cutting heights, while lower angles accommodate thinner material profiles.

PLC-controlled angle adjustment is recommended when precise, repeatable angles are required. It reduces reliance on manual settings and helps minimise operator error during frequent angle changes.
