A block-cut-off machine is an industrial foam cutting system designed to cut long PU foam slabs into predetermined block lengths. To understand where this machine fits into the production process, it is helpful to first understand how foam is made. During PU foam production, the chemicals are mixed and reacted to form a continuous foam slab, which then needs to be processed into manageable sections for further manufacturing.
A block-cut-off machine is commonly integrated with continuous foaming lines, where freshly produced foam exits as a long slab and needs to be divided into manageable sections for further processing.
During operation, the foam slab moves along a conveyor until it reaches the preset cutting position. The cutting mechanism then separates the slab across its width, producing blocks that are easier to handle, store, cure, trim, peel, or send for subsequent foam processing.
The required block dimensions depend on the foam product, production capacity, and downstream processing requirements. For example, manufacturers producing mattress foam may require different block sizes and handling arrangements than those producing furniture, packaging, or insulation products.
A foam block cutting machine may be used for applications such as:
- Flexible PU foam blocks
- High-density PU foam blocks
- Mattress and bedding foam
- Furniture and upholstery foam
- Packaging foam
- Insulation and specialised foam applications
What Is a Block-Cut-Off Machine?
A block-cut-off machine is designed to cut continuous PU foam slabs into predetermined lengths. Also known as a foam block cutting machine, it is installed as part of the foam production line and works after the foaming process.
Unlike manual cutting, where the operator has to measure and cut each section, a foam block cutting machine follows the set cutting length. The foam slab moves along the conveyor, and when it reaches the required position, the cutting mechanism moves across the slab and separates one block from the next.
The machine can be adjusted according to the block size required for a particular application. This is useful because foam manufacturers may produce different block dimensions depending on whether the foam is going to be used for mattresses, sofas, cushions, packaging, or insulation.
The cut block can then move to the next stage of production, such as curing, storage, trimming, or sheet cutting. In a continuous foam production setup, this helps connect the foaming and cutting stages without requiring the long slab to be handled and cut manually.
Why Is This Machine Important in PU Foam Production?
A block-cut-off machine for PU foam helps manufacturers convert long foam slabs into manageable blocks without relying entirely on manual measurement and cutting. This can improve block-length consistency, reduce handling effort, and support smoother movement between foam production and downstream processing. It also plays a role in planning foam manufacturing plant space requirements, as the machine, conveyor system, and material-handling areas need to be properly accommodated within the production layout.
A foam block cutting machine helps overcome these issues by giving manufacturers better control over block size and cutting precision. It also makes it easier to move the foam from the PU foam making machine to the next stage of production while supporting a more organized and efficient plant workflow.
| Production Challenge | How a Block Cut-Off Machine Helps |
|---|---|
| Long foam slabs are difficult to handle | Cuts slabs into manageable blocks |
| Manual cutting may be uneven | Improves size consistency |
| Production flow may slow down | Supports faster line movement |
| Foam wastage can increase | Gives cleaner and controlled cuts |
| Labour dependency may be high | Reduces manual cutting effort |
Who Should Use a Block-Cut-Off Machine?
A block-cut-off machine is particularly useful for foam manufacturers who process long PU foam slabs and need consistent block dimensions for further production. It is especially suitable for medium- to high-volume manufacturing operations where manual cutting can slow production and increase handling effort.
This machine can be beneficial for:
- Mattress manufacturers producing foam blocks for bedding applications.
- Furniture and upholstery manufacturers processing foam for sofas, cushions, and seating.
- Packaging manufacturers requiring foam blocks for protective packaging and inserts.
- Insulation manufacturers processing suitable foam materials for insulation applications.
- Large-scale foam plants that need consistent cutting and smoother material movement.
- Manufacturers using continuous foaming lines where long foam slabs need to be divided into manageable blocks.
The right block-cut-off machine depends on factors such as foam type, slab dimensions, required block length, production capacity, and automation level. Manufacturers planning a complete production line should also consider how the machine integrates with their foaming equipment and downstream foam-cutting processes.
How Does a Block-Cut-Off Machine Work? Step-by-Step Guide
Well, the process that goes behind the working of a block-cutting machine is simpler to understand, but it requires accuracy.
The machine generally works in coordination with the foaming line and the conveyor system.
1. Foam Slab Moves Forward
Once the foam has been produced, the long slab moves forward on a conveyor. The machine is positioned in the production line so that the foam can gently pass through it.
2. Required Length is Measured
The machine is set as per the required block length. This depends on the manufacturer’s production needs, storage space, and the type of final foam that is being made.
3. Conveyor Movement is Controlled
Once the desired length is achieved, the conveyor movement is controlled and paused. This provides the cutting system with the right position for a clean cross-out.
4. Cutting Unit Comes Down
The cutting unit then moves swiftly across the foam. Many machines make use of a band knife system to cut the foam vertically or through a swing-frame mechanism.
5. Foam Block is Separated
The slab is later cut into a separate block. This block can then move on to the next stage, such as curing, trimming, peeling, slicing, and further cutting.
6. Process Repeats
Once the cut is completed, the conveyor continues to move, and the next block length is measured. This paves the way for repeated cutting with better uniformity.
What Are the Main Components of a Block-Cut-Off Machine?
| Machine Part | Purpose |
|---|---|
| Conveyor system | Moves the foam slab through the machine |
| Cutting unit | Cuts the foam slab into blocks |
| Band knife or blade | Performs the actual cutting |
| Swing frame | Helps guide the blade movement |
| Control panel | Allows operators to set and manage cutting functions |
| Sensors or measuring system | Helps maintain block length accuracy |
| Support frame | Holds the machine structure steady |
Well, when it comes to the advanced models, it also consists of PLC controls, automatic settings, and synchronisation with the foaming speed.
Types of Foam It Can Cut
A foam block cutting machine is primarily used for PU foam slabs, although the actual foam types it can process depend on the machine configuration, blade system, foam density, and manufacturer specifications.
| Machine Part | Purpose |
|---|---|
| Conveyor system | Moves the foam slab through the machine |
| Cutting unit | Cuts the foam slab into blocks |
| Band knife or blade | Performs the actual cutting |
| Swing frame | Helps guide the blade movement |
| Control panel | Allows operators to set and manage cutting functions |
| Sensors or measuring system | Helps maintain block length accuracy |
| Support frame | Holds the machine structure steady |
Therefore, this makes it a useful machine for manufacturers who are working across different foam product lines.
How Is a Block Cut-Off Machine Different From Other Foam Cutting Machines?
All the foam cutting machines are not used with the same intention. A block cut-off machine is mainly used for cutting long slabs into blocks.
While other machines can be used for shaping, trimming, and slicing.
| Foam Cutting Machine | Primary Purpose | Best Suited For |
|---|---|---|
| Block Cut-Off Machine | Cuts large foam slabs into blocks of specific lengths | Primary foam block preparation and production lines |
| Horizontal Foam Cutting Machine | Cuts foam blocks horizontally into sheets | Mattress, upholstery, and foam sheet production |
| Vertical Foam Cutting Machine | Makes vertical and straight cuts through foam | Custom-sized foam pieces and profiles |
| Circular Foam Cutting Machine | Cuts foam into circular or curved shapes | Gaskets, cushions, packaging, and shaped foam components |
| Contour Foam Cutting Machine | Creates complex contours and profiles | Automotive, furniture, packaging, and specialised foam products |
So, a foam-cutting machine can be used to refer to the different types of equipment, but a block-cut-off machine, on the other hand, is a specific machine that is used early in the foam processing line.

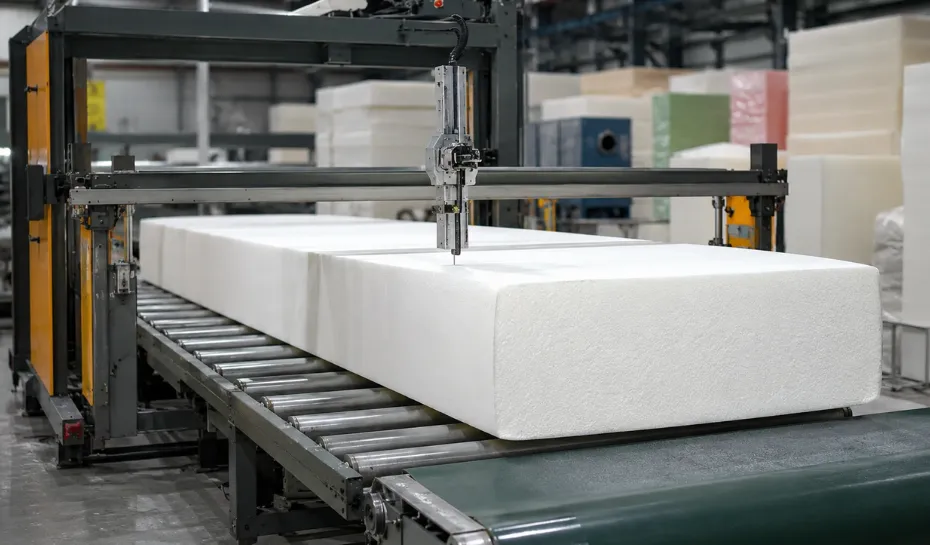

Benefits of Using a Block Cut-Off Machine
A good foam block cutting machine can help improve both production quality and plant efficiency.
1. Better Cutting Precision
The machine helps cut foam blocks to fixed sizes, improving uniformity and foam cutting accuracy while reducing errors in later processing.
2. Less Manual Labour
Manual cutting can be slow and physically demanding. An automatic or semi-automatic machine can help reduce labour dependency.
3. Lower Material Wastage
Clean and controlled cutting helps reduce uneven edges and unnecessary trimming waste.
4. Faster Production Flow
When the machine is well integrated with the foaming line, it helps maintain a smoother and more consistent production rhythm.
5. Suitable for Large-Scale Foam Plants
For manufacturers producing foam in bulk, a block-cut-off machine can help manage output more efficiently and maintain consistent block dimensions.
What to Check Before Buying a Block Cut-Off Machine
Before selecting a machine, manufacturers should thoroughly assess their production needs.
| Factor to Check | Why It Matters |
|---|---|
| Cutting width | Must match the foam slab size |
| Cutting height | Should support the required block thickness |
| Foam type | Flexible and rigid foam may need different settings |
| Automation level | Affects speed, labour, and control |
| Blade quality | Influences cut finish and machine life |
| Conveyor compatibility | Helps integrate with the production line |
| Service support | Important for maintenance and uptime |
So, if you are looking for foam machine manufacturers in India, it is always better to opt for a manufacturer that understands complete foam production lines and not just the individual machines. This will help ensure that the block cut-off system works well with the foaming machine, conveyors, and other cutting equipment.
Wrapping Up
A block-cut-off machine is an essential part of modern foam production, designed to cut long PU foam slabs into precise, manageable blocks. It improves cutting uniformity, makes foam easier to handle, and supports smoother material movement throughout the production line.
For manufacturers using a PU foam machine or planning a complete foam production setup, choosing the right block-cut-off machine can help reduce manual effort, control foam wastage, and maintain consistent block sizes. The ideal machine depends on factors such as foam type, production capacity, required block dimensions, and level of automation.
As one of the trusted foam machine manufacturers in India, Santech Foam Machines provides industrial foam processing solutions designed to support efficient and consistent foam production. With the right block-cut-off machine, manufacturers can turn an essential cutting stage into a more streamlined and productive part of their overall manufacturing process.
